| CAPACITY | No. of Panels |
|---|---|
| 100 LPD | 1 |
| 125 LPD | 1 |
| 150 LPD | 1 |
| 200 LPD | 2 |
| 250 LPD | 3 |
| 300 LPD | 3 |
| 500 LPD | 4 |
| 1000 LPD | 8 |
- Panel Sizes - 2000mm x 1000mm & 1660mm x 960mm
- Available in - FPC Normal & FPC Pressurized

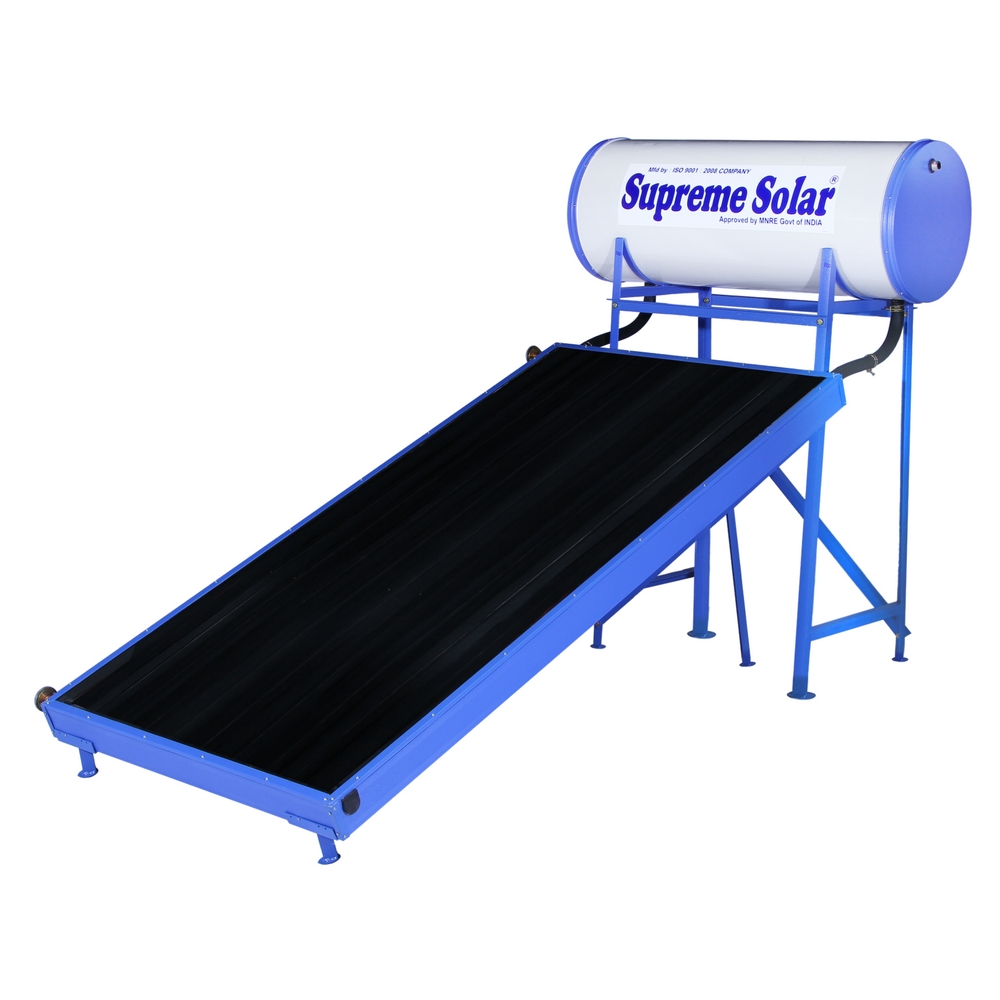

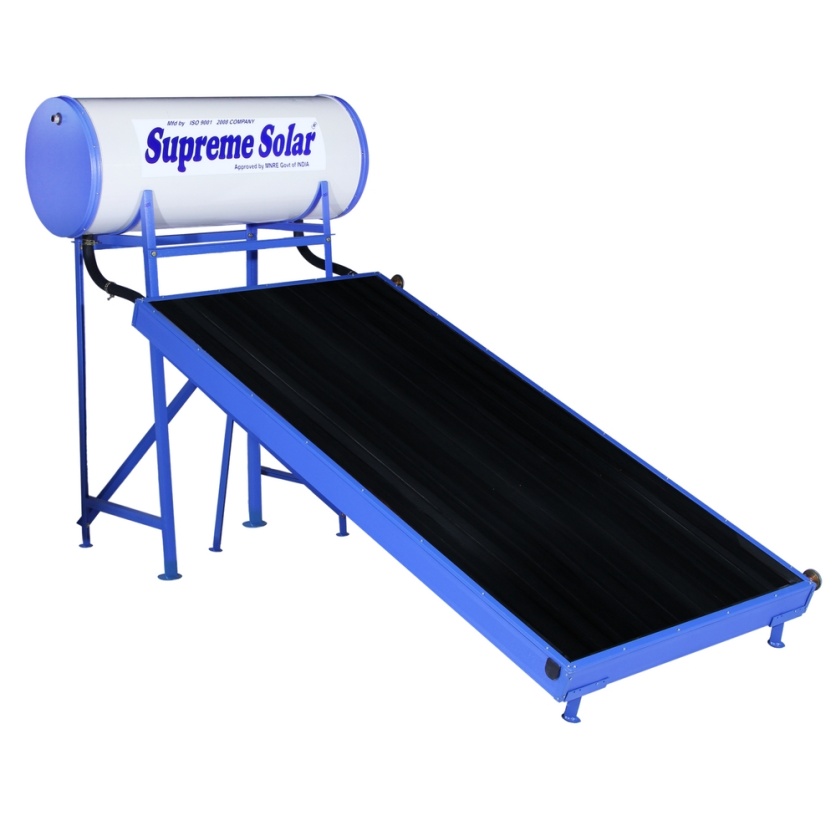

FLAT PLATE COLLECTOR:
| SR. NO. | PARTICULARS | SPECIFICATION |
|---|---|---|
| 1 | Section | 1.2 mm thick Aluminium |
| 2 | Back sheet | 0.46 mm thick Aluminium |
| 3 | Insulation | Fiber Glass wool |
| 4 | Foil | 0.05 mm thick Aluminium |
| 5 | Flat plate collector fins (9 Nos) | Ultrasonic welded with Nalsun coating.Copper pipe 24 SWG, Aluminium strip 0.20mm |
| 6 | Header pipe | Copper 24 SWG |
| 7 | Glazing | 1000 X 2000 X 4mm clear toughened glass for Regular size & 960x1660x4mm clear toughened glass for small size collectors |
| 8 | Glass beading | E.P.D.M. Rubber |
| 9 | Fasteners | Stainless steel |
| 10 | Grommets | E.P.D.M Rubber |
| 11 | Flanges | Brass |
| 12 | Finishing | Powder coating |
TANKS :
Inner tank : 2mm H.R sheet with co2 welding inside coated with Ceramic coating / 3mm for pressurized systems.
Side dish : 2.5mm for Normal / 3.5mm for PRD
Connecting pipes : SS.
Insulation : 50 mm thick PUF.
Outer Cladding : Pre-coated laminated sheet (color: Half white) / Mirror finish
End Caps : GI with PP coating.
Support Structure : Mild Steel with powder coating.
